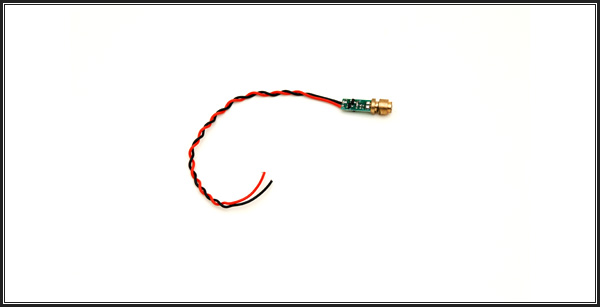

    JJ-MD 002
ModulesJJ-MD 002

Model       JJ-MD 002
Wavelength       650nm
Optical Power       <5mW(Class IIIA); <1mW(Class II)
Spot shape       Circle
Spot Range       500 yards
Module material       Copper
Diode Lens Material       Plastic
Diode Circuit Type       APC
PCB material       FR-4
Diameter       7.7*25mm
Operating voltage       2.6V ~ 12V
Operating current       < 40 mA
Operating Temperature       -10~+40℃
Storage Temperature       -15~+85℃
Expected Life       3000 hrs
